New STRACK locking plates for slide holding devices
Locking plates are designed to significantly simplify the insertion of the latching groove in the slide. The time -consuming milling with a form cutter is eliminated, because the nut is already optimally incorporated in these plates. They are simply screwed in a pocket in the bottom side of the slide. Because the STRACK -locking plates consist of hardened steel, no wear on the slide or the mould plate occurs.

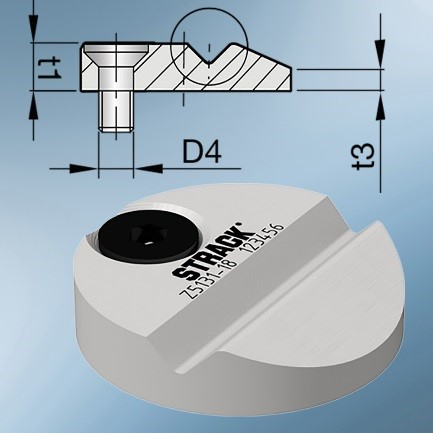

The round version Z5131 for the round slide holding devices Z5129 + Z 5130 is available in the three sizes: diameter 13, 18, 27 mm.
The rectangular version Z5141 for the slide holding device Z5140 is available for sizes from 38 – 56 mm length.
 |
-
