PA66 Zytel and PA66 Minlon now also with premium services from RESINEX!
What This Means for You:
-
Rapid Delivery: Leverage our advanced warehouse network for fast access to stock materials.
-
Expert Support: Benefit from the in-depth knowledge of our technical specialists.
-
Quick & Easy: Utilize our Resinex Digital platform for hassle-free 24/7 access to order status, pricing, documents and much more
Seeking Superior Thermal Properties in PA66? Discover Zytel Plus!
-
Withstand longer periods of exposure to hot air vs standard nylon.
-
Withstand significantly higher temperatures than standard nylon.
-
Withstand more than 3000 hours exposure to hot oil and 3000 hours exposure to hot automotive coolant.
-
Last 2-3 times longer than other nylons (PA66) exposed to aggressive chemicals and hot environments.
-
Retain most of its weld strength after 1000 hours at 210°C.
Toughen Up Your Products with Zytel PA66 – Up to 8x Impact Resistance!

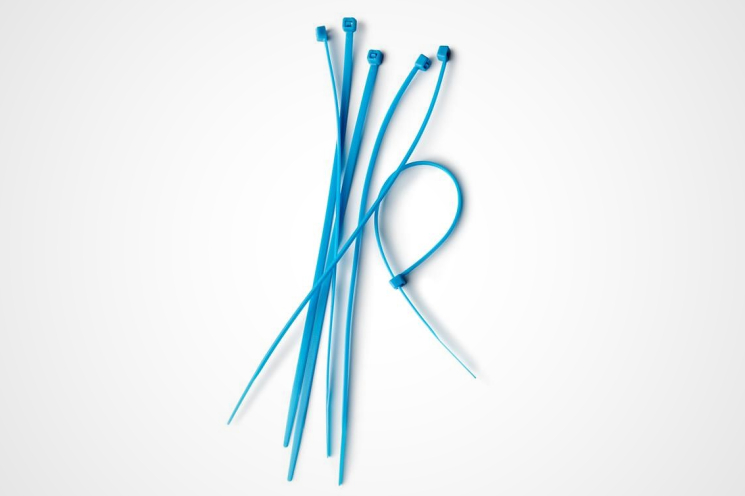

Unfilled, toughened grades are great for things needing flexibility and impact resistance, like fasteners or cable ties. They give:
-
Impact resistance in low temperature and dynamic environments.
-
Reduces damage to parts to extend lifetime in use.
-
Elongation capability for applications that require higher flexibility.
 |
|
Some of the most popular toughened grades are:
-
Zytel® MT409AHS - Medium Toughened PA66
-
Zytel® ST801 - Super Toughened PA66
Super Toughened grades have Notched Charpy Impact > 40 kJ/m2 which is 8 times higher than in case of a regular PA66.
Boost Strength with Zytel PA66 Glass Reinforced Grades!
Zytel PA66 glass reinforced grades are perfect for applications that need a high elastic modulus, up to 11000 MPa, and a tensile strength of up to 200 MPa.
What You Get with Glass Reinforced Zytel PA66 (13% - 60% GF):
-
High stiffness and strength.
-
Long term heat aging resistance in the range of 170°C to 180°C.
-

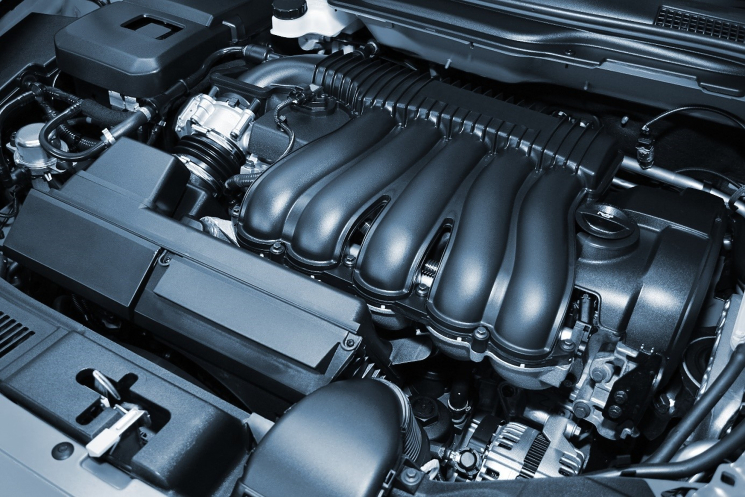

Chemical resistance to automotive fluids: engine oil, fuel, brake fluid.
The most popular grades are:
-
Zytel® 70G13HS1L - PA66 GF13, heat stabilized, lubricated.
-
Zytel® 70G30HSLR - PA66 GF30, heat stabilized, lubricated, hydrolysis resistant.
-
Zytel® 70G50HSLA - PA66 GF50, heat stabilized, lubricated, high flow.
-
Zytel® 70G50HSLR - PA66 GF50, heat stabilized, lubricated, hydrolysis resistant.
The property enhancement is maximized when the specially treated glass fibers are uniformly dispersed into the nylon. This process creates a strong chemical bond between the nylon and the glass, significantly increasing the material's tensile strength and stiffness in a variety of environmental conditions.
 |
|
Seeking Minimal Warpage in Nylon? Try MINLON® PA66!
MINLON® PA66 grades are mineral, and mineral/glass reinforced 66 nylons that offer stiffness and heat deflection temperatures similar to those of glass reinforced nylons but with considerably less warpage.
MINLON® PA66 resins also provide greater dimensional stability and creep resistance than unreinforced nylon.
Some of the most popular toughened grades are:
-
Minlon® 10B40 - PA66, 40% mineral filled.
-
Minlon® 11C140 - PA66, 40% mineral filled, impact resistant.
-
Minlon® 22C BK086 - 38% mineral/glass reinforced, and heat stabilized, black PA66.
-
Minlon® EFE6053 - 40% mineral-glass reinforced PA66 (16% mineral and 24% glass).
Interested?
RESINEX is here to help you choose the right PA66 Zytel® or PA66 Minlon® for your project.
Write for a free sample, technical advice or price to resinex.cz@resinex.com and for more information visit www.resinex.com.
-
